Fiber optic distribution frame provides efficient cable connections between outside plant cables and equipment inside the buildings and communications facilities.

Box integrates fiber splicing, storage and cable connections together in a unit. They can manage both bundle type and ribbon type fiber cables. It is with large working space to integrate the pigtail, cables and adapters for fiber management.

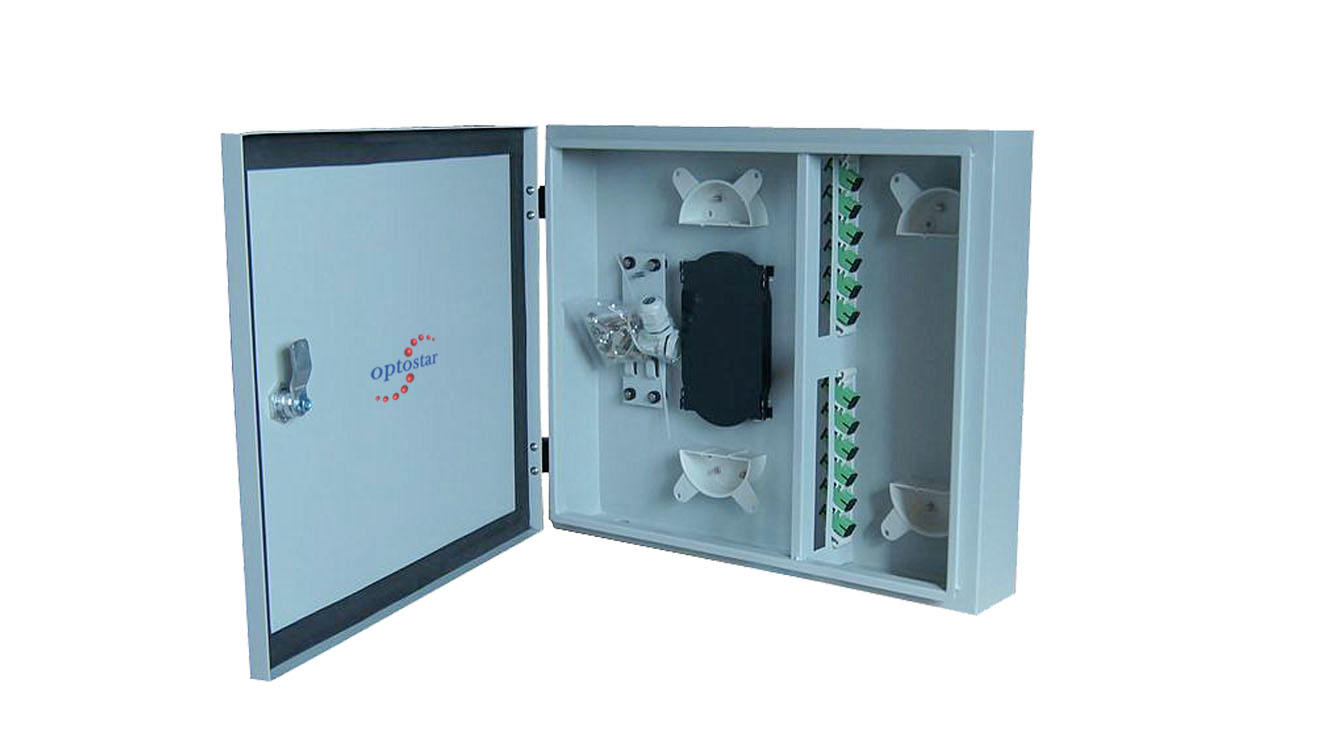

This fiber optic distribution frame is designed for outdoor wall mounted using, cold-roll steel, with adapter plate & splice trays at one side for fiber splicing, distribution and management.

         Product Features

  • Cold-roll steel, electrostatic painting.
  • ABS plastic tray inside, 12cores per tray.
  • Splice trays in one side or both sides available.
  • Different adapter plate available: FC, SC, LC, ST…
  • Cable entry ports suitable for single fiber, bundle & ribbon fiber cables.
  • Reasonable design ensures the cables are in good order.
  • Wall mounted type, outdoor using, IP65; pole mounted & bottom base available.
  • With lock on front door.
  • 12, 24, 48, 96 … capacity customised.


PARAMETER APPLICATION DOWNLOAD CONTACT US

PARAMETER

Item Parameter
Name Fiber wall-mounted Outdoor ODF
Model OP-ODF-OF
Standard working wavelength 850nm, 1310nm, 1550nm
Operation temperature -30 ~ +60℃
Storage temperature -30 ~+60℃
Relative humidity ≤85%(+30℃)
Atmospheric pressure 70 ~ 106Kpa
Durability >1000 times

APPLICATION


  • Mainly used for cable inlet and fixing; fiber splicing and protecting; pigtail storage; patch cord storage, connection and use management between wiring closets and equipments.
  • Applicable to Telecommunications, Fiber to the home (FTTH), LAN / WAN, CATV ect. System projects.

DOWNLOAD

Model Description DownLoad
OP-ODF-OF-012 12 cores 465x410x110mm 1pc splice tray in one side
OP-ODF-OF-024 224 cores 465x410x110mm 2pc splice tray in one side
OP-ODF-OF-048 48 cores 465x410x155mm 4pc splice tray in one side
OP-ODF-OF-072 72 cores 560x480x210mm 6pc splice tray in one side
OP-ODF-OF-096 96 cores 560x480x265mm 8pc splice tray in one side
