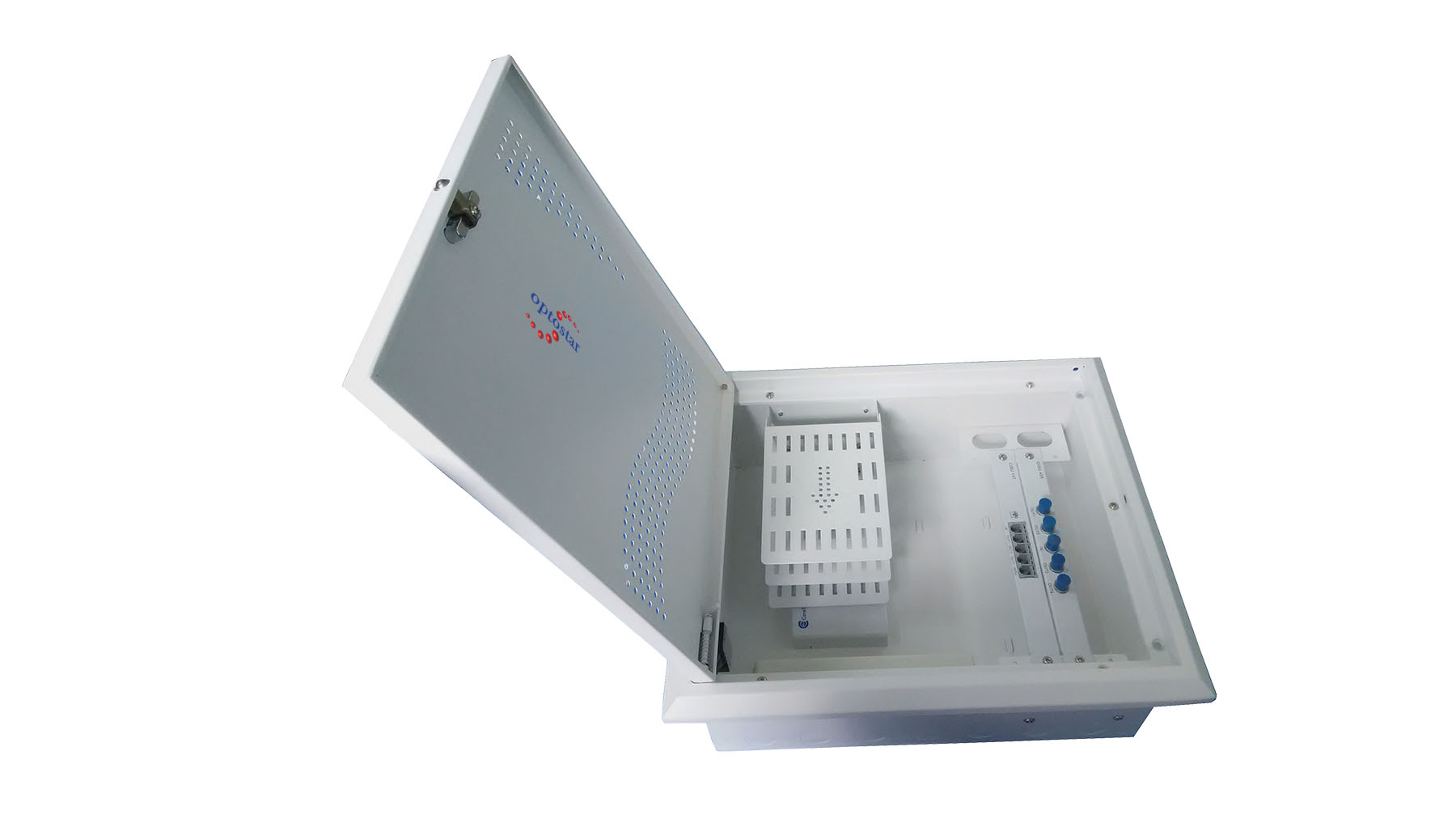

Fiber Optical Multimedia information box is a new smart box integrated of intelligent system and FTTH-Fiber to home system. It is widely used in connection and allocation of line for broadband, telephone, computer, television, audio, monitor, switch, power, etc and fiber to home

         Product Features

  • High quality sanded cover, reserve temperature-dissipating holes .Effective air exchange; balance the heat ,transfer the wireless signal outward high efficiently.
  • Made by cold-rolled steel-thickness 1mm, and Electrostatic spraying. no oxidation, corrosion and not easy out of shape.
  • Large space of the inner box, reasonable layout, besides to install with fiber optic components, and enough space leave for installing 1 ONU, 1 router,1 faceplate(2core),and 4 module.
  • Standard design, suitable to apply for communication projects and household decoration
  • Compact opening and closing the door, easy using.


PARAMETER APPLICATION DOWNLOAD CONTACT US

PARAMETER

Item Parameter
Name Fiber Optical Multimedia information box
Model OP-ODF-MF
Standard working wavelength 850nm, 1310nm, 1550nm
Operation temperature -30 ~ +60℃
Storage temperature -30 ~+60℃
Relative humidity ≤85%(+30℃)
Atmospheric pressure 70 ~ 106Kpa
Durability >1000 times

APPLICATION


  • Mainly used for cable inlet and fixing; fiber splicing and protecting; pigtail storage; patch cord storage, connection and use management between wiring closets and equipments..
  • Applicable to Telecommunications, Fiber to the home (FTTH), LAN / WAN, CATV ect. System projects.

DOWNLOAD

No.
Name
Description
Unit Quantity Remark DownLoad
1 OP-ODF-MF-001 Box Size:
390(W)*340(H)*139(D)mm
set 1
Bottom box size:350(W)*300(H)*120(D)mm
2 Face Plater Face Plater set 1 Standard
3 Power Socket Standard set 1 Standard
4 Binding Post 3 set 1 Standard
5 Telephone Module 1in 4out set 1 Optional
6 Television Module 1in 4out set 1 Optional
7 Accessory Screw,lie,… set 1 Standard
