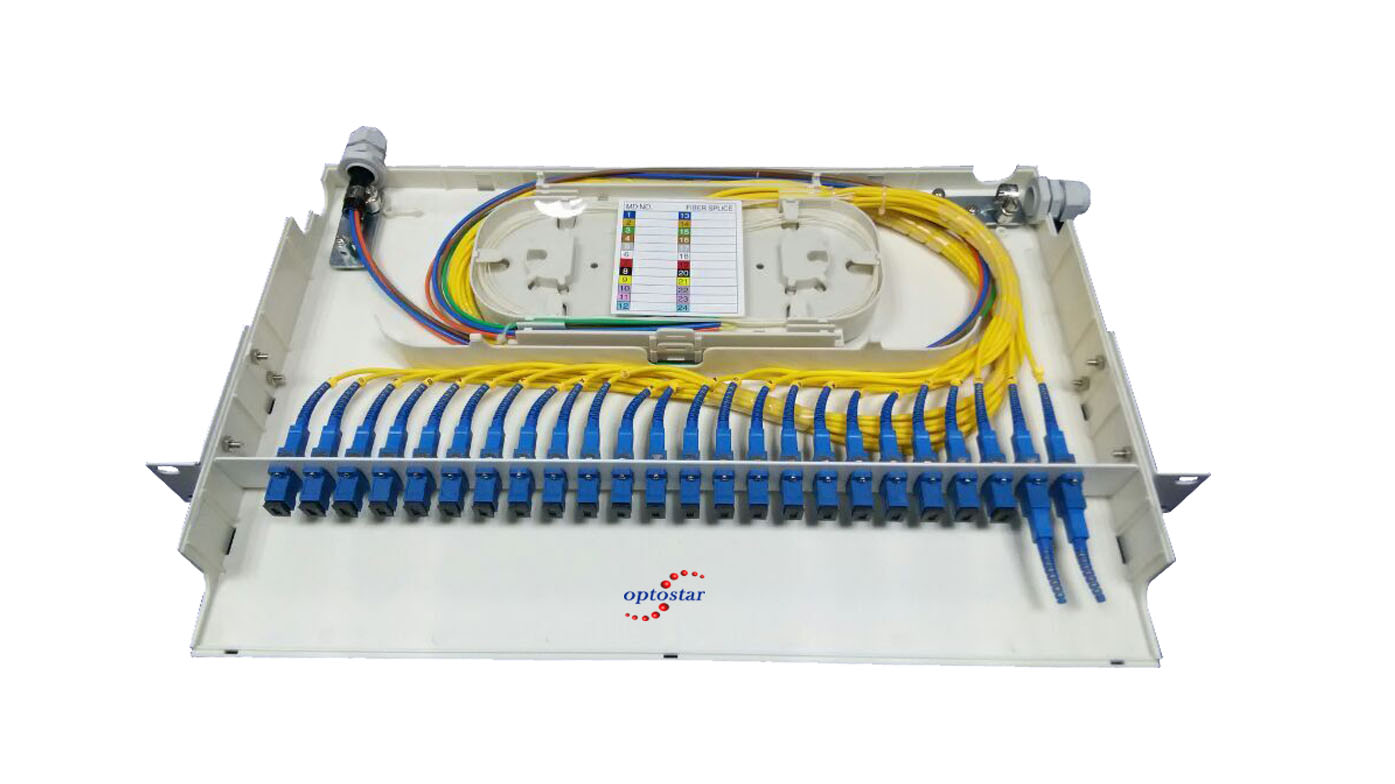

Fiber optic patch panel provides efficient cable connections between outside plant cables and equipment inside the buildings and communications facilities.

Box integrates fiber splicing, storage and cable connections together in a unit. They can manage both bundle type and ribbon type fiber cables. It is with large working space to integrate the pigtail, cables and adapters for fiber management, with?standard 19 inch design, cold roll stell box, fixed type, with metal front cover, adapter plate of? can be unloaded.

         Product Features

  • Box body-ABS plastic, white or black color.
  • Splice tray-ABS plastic, 12-24cores per tray
  • Optional?adapter plate available: FC, SC, LC, ST…
  • Suitable for 19’’ standard optic distribution cabinets
  • With front cover; 4 fiber cable entry ports at rear side.
  • Cable entry ports suitable for single fiber, bundle & ribbon fiber cables.
  • Reasonable design ensures the cables are in good order.
  • Rack mounted fixed type, indoor using.
  • Fiber core:12(1U),24(1U),48(1U).


PARAMETER APPLICATION DOWNLOAD CONTACT US

PARAMETER


Item Parameter
Name Fixed Rack-mounted ODF(ABS Plastic)
Model OP-ODF-PM-D
Operation temperature -5 ~ +40
Storage temperature -40 ~+70
Relative humidity =<85%(+30)
Atmospheric pressure 70 ~ 106Kpa
Durability >1000 times
Quality certificate SGS
Capacity 24cores
Material ABS Plastic

APPLICATION


  • Mainly used for cable inlet and fixing; fiber splicing and protecting; pigtail storage; patch cord storage, connection and use management between wiring closets and equipments.
  • Applicable to Telecommunications, Fiber to the home (FTTH), LAN / WAN, CATV ect. System projects.


DOWNLOAD

Model Description DownLoad
OP-ODF-PM-D012 12 cores 420x300x44.5mm(1U height)
OP-ODF-PM-D024 24 cores 420x300x44.5mm(1U height)
OP-ODF-PM-D048 48 cores 490x300x89mm(1U height)
