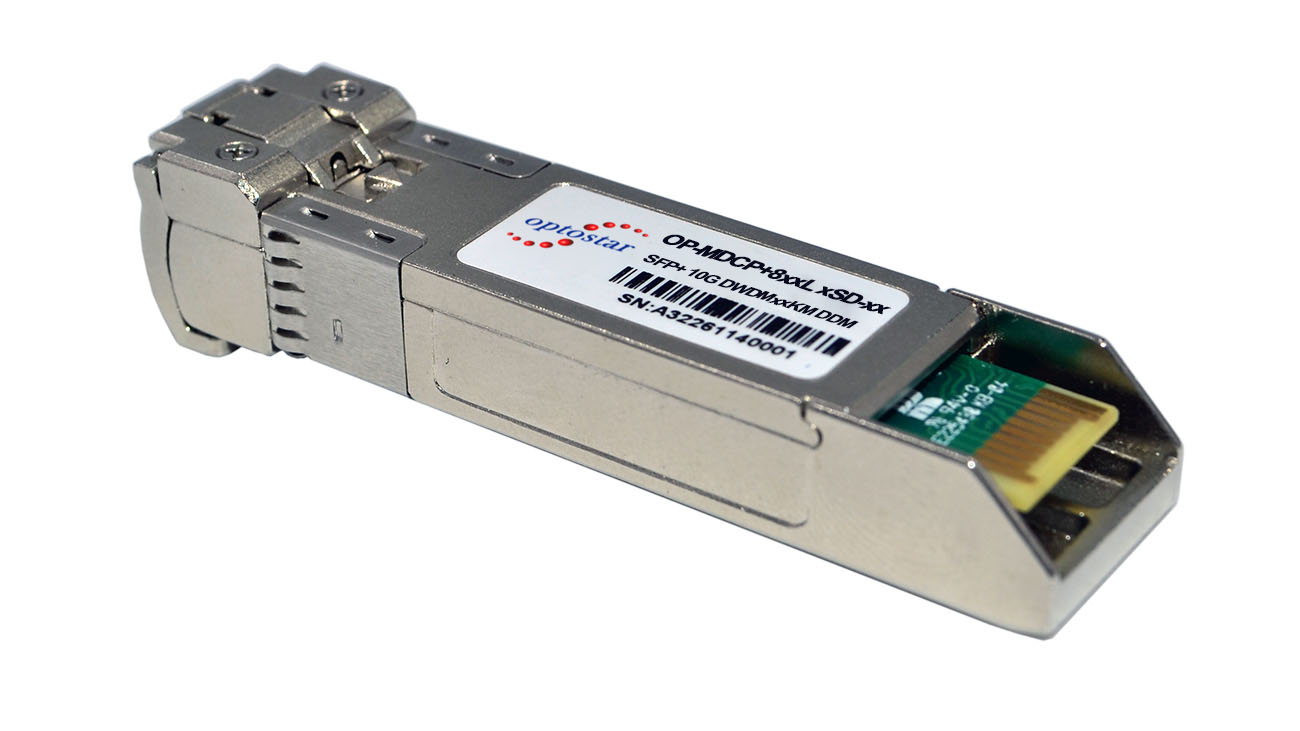

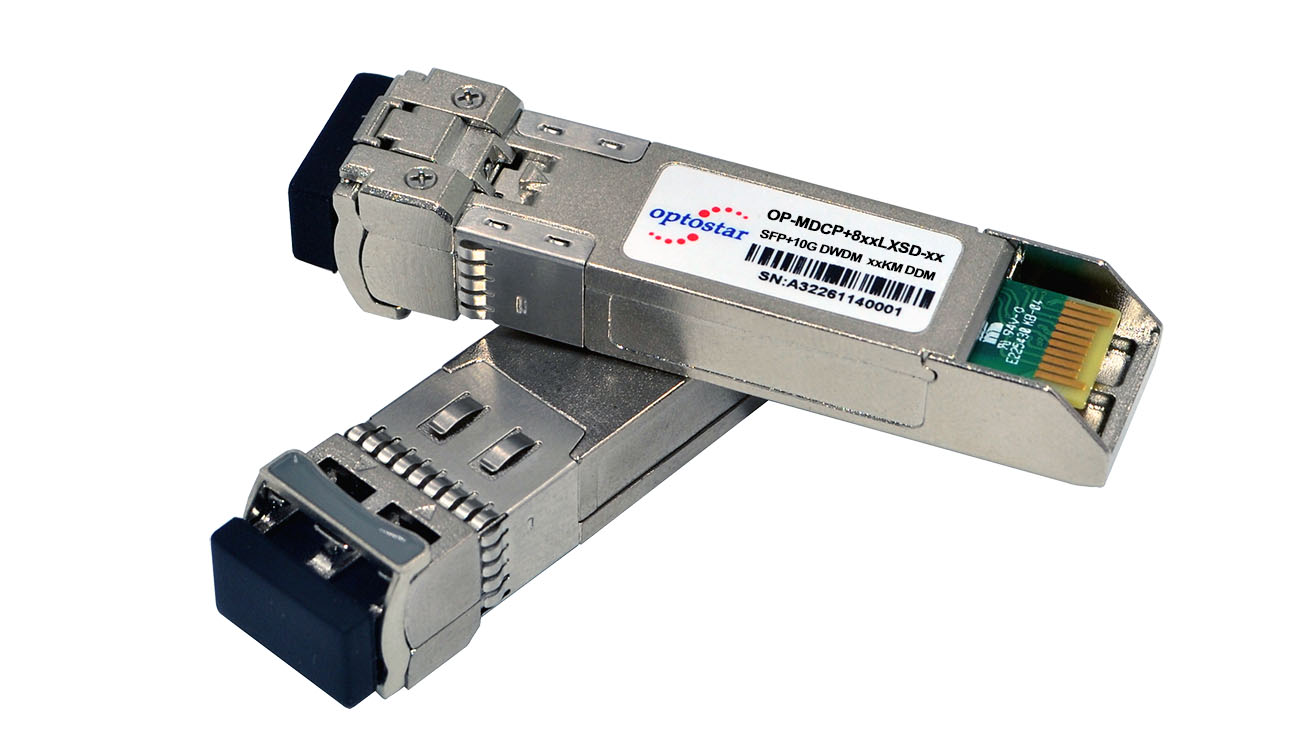

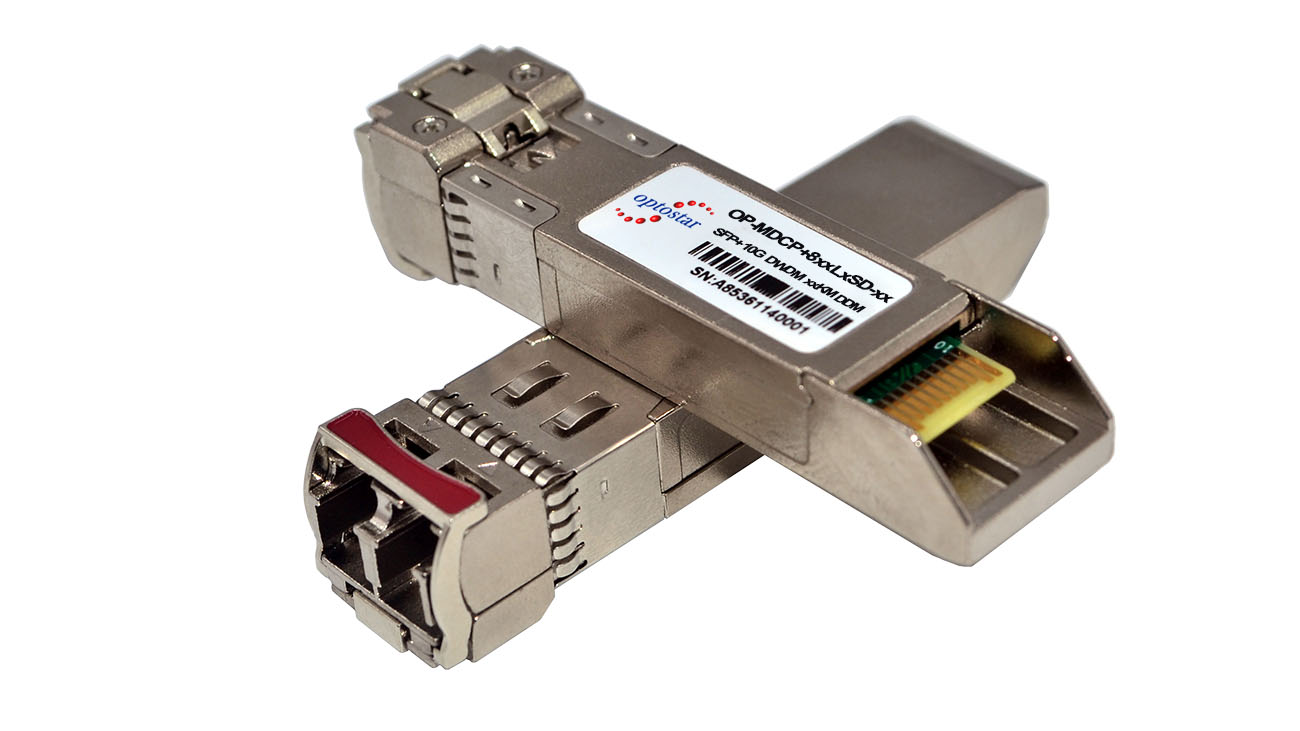

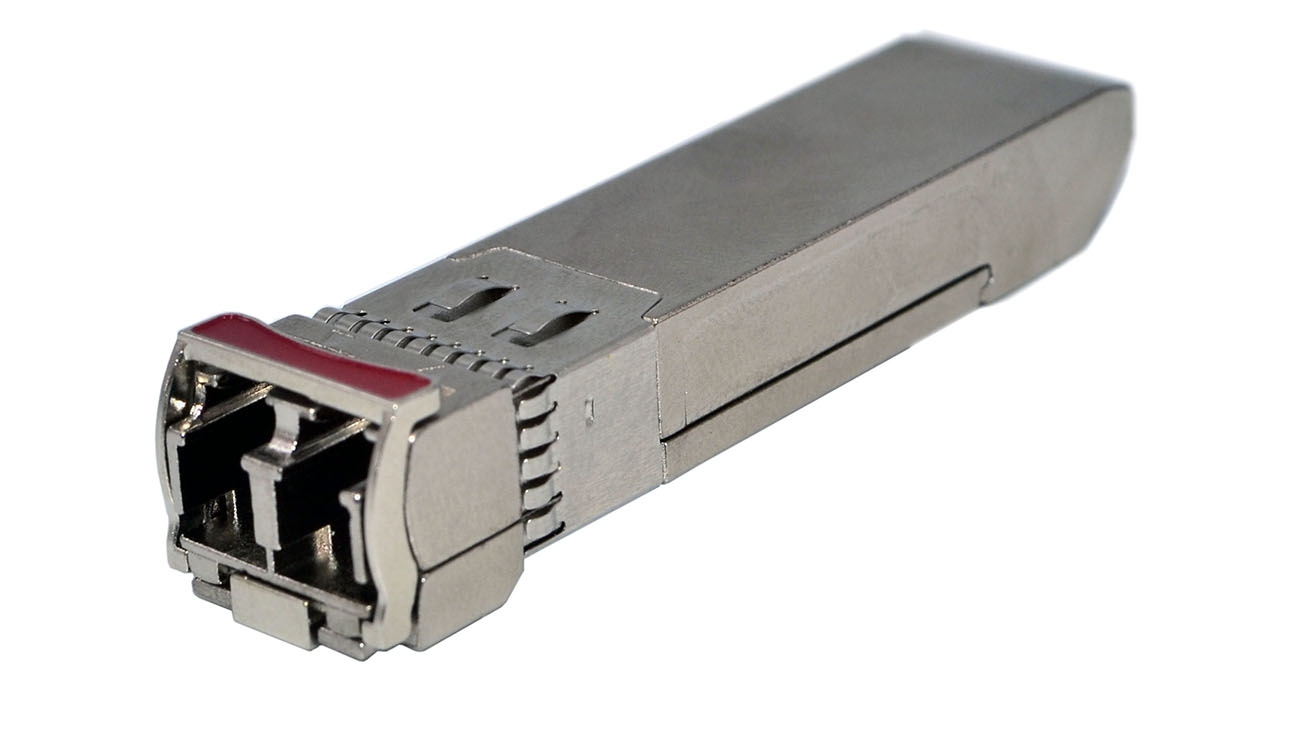

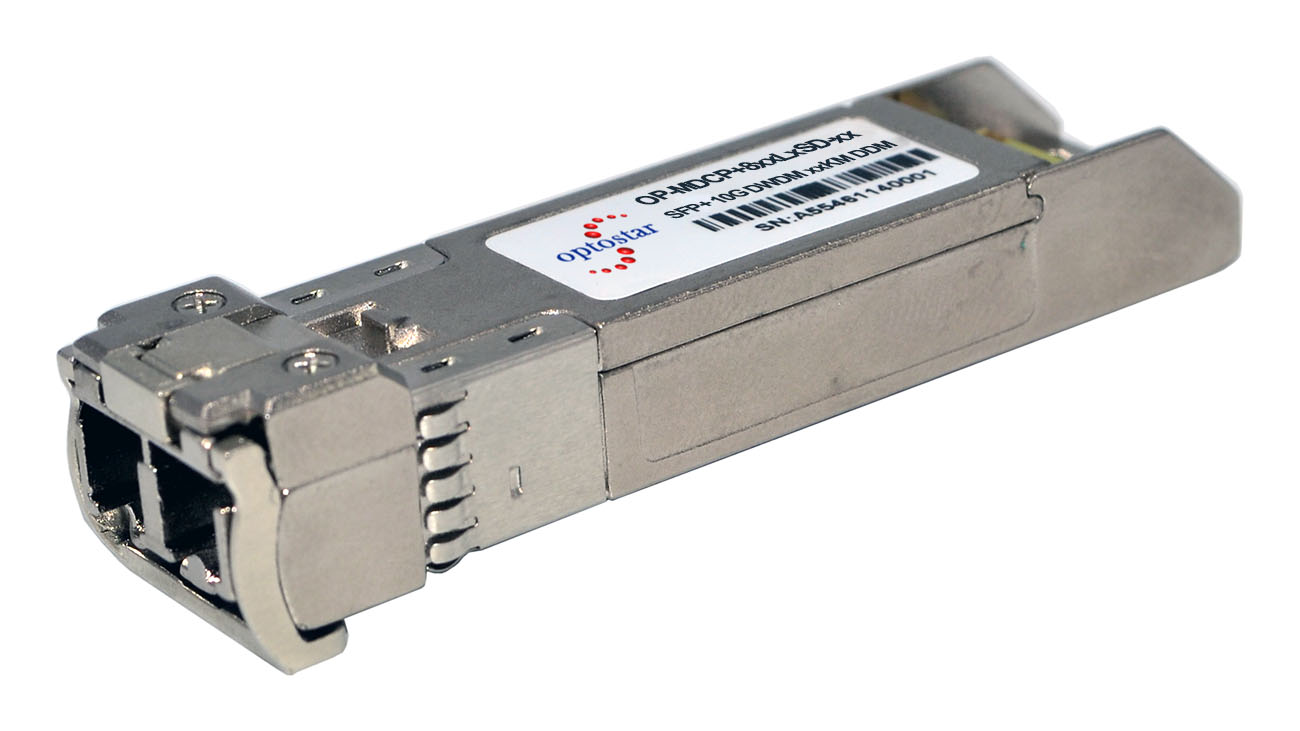

OPTOSTAR OP-MCP+8xxL1SD-xx SFP+, The enhanced small form-factor pluggable (SFP+) transceivers are compatible with SFF-8431, SFF-8432 and support 10G Ethernet LR and 10G Fibre Channel. It is designed for use in 10G-Gigabit multi-rate links up to 10km of G.652. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.

         Product Features

  • Single LC connector
  • Distance up to 10Km/20Km/40Km/60km/80/km/120km/160km on 9/125um SMF
  • Supports 9.95 to 11.3Gb/s(Built-in dual CDR)
  • DWDM DFB transmitter(100GHz channel spacing)
  • Hot-pluggable SFP footprint
  • RoHS compliant and Lead Free
  • Metal enclosure for lower EMI
  • Single +3.3V power supply
  • Power dissipation<2.0W(0~70);<2.3W(0~85);<2.3W(-40~85 )
  • Commercial and industrial
  • operating temperature optional
  • SFP MSA SFF-8472 SFF-8431 SFF-8432 Compliant


PARAMETER APPLICATION DOWNLOAD CONTACT US

PARAMETER


Pin Descriptions
Pin
Symbol Name/Description Ref.
1
VeeT Transmitter Ground(Common with Receiver Ground) 1
2
TX Fault Transmitter Fault.
3
TX Disable Transmitter Disable. Laser output disabled on high or open. 2
4
MOD_DEF(2) Module Definition 2. Data line for Serial ID. 3
5
MOD_DEF(1) Module Definition 1. Clock line for Serial ID. 3
6
MOD_DEF(0) Module Definition 0. Grounded within the module. 3
7
Rate Select No connection required
8
LOS Loss of Signal indication. Logic 0 indicates normal operation. 4
9
VeeR Receiver Ground (Common with Transmitter Ground) 1
10
VeeR Receiver Ground (Common with Transmitter Ground) 1
11
VeeR Receiver Ground (Common with Transmitter Ground) 1
12
RD- Receiver Inverted DATA out.AC Coupled
13
RD+ Receiver Non-inverted DATA out.AC Coupled
14
VeeR Receiver Ground (Common with Transmitter Ground) 1
15
VccR Receiver Power Supply
16
VccT Transmitter Power Supply
17
VeeT Transmitter Ground (Common with Receiver Ground) 1
18
TD+ Transmitter Non-Inverted DATA in. AC Coupled.
19
TD- Transmitter Inverted DATA in. AC Coupled.
20
VeeT Transmitter Ground (Common with Receiver Ground) 1
Notes:
1. Circuit ground is internally isolated from chassis ground.
2. Laser output disabled on TX Disable >2.0V or open, enabled on TX Disable<0.8V.
3. Should be pulled up with 4.7k-10kohms on host board to a voltage between 2.0V and 3.6V.
MOD_DEF(0) pulls line low to indicate module is plugged in.
4. LOS is open collector output. Should be pulled up with 4.7k–10kohms on host board to a voltage between 2.0V and 3.6V. Logic 0 indicates normal operation; logic 1 indicates loss of signal.

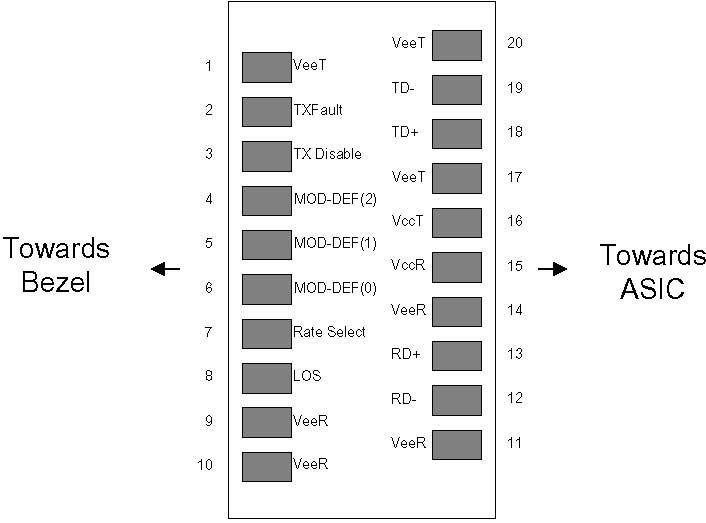

Pin-out of Connector Block on Host Board

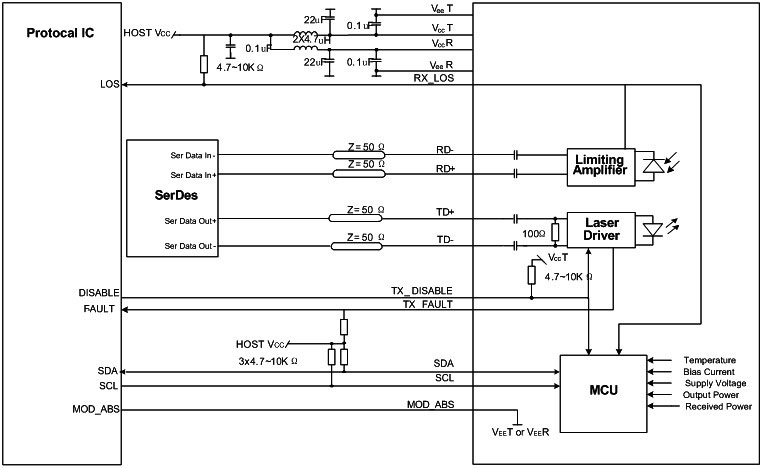

Recommend Circuit Schematic

OP-MP415L1SD-120

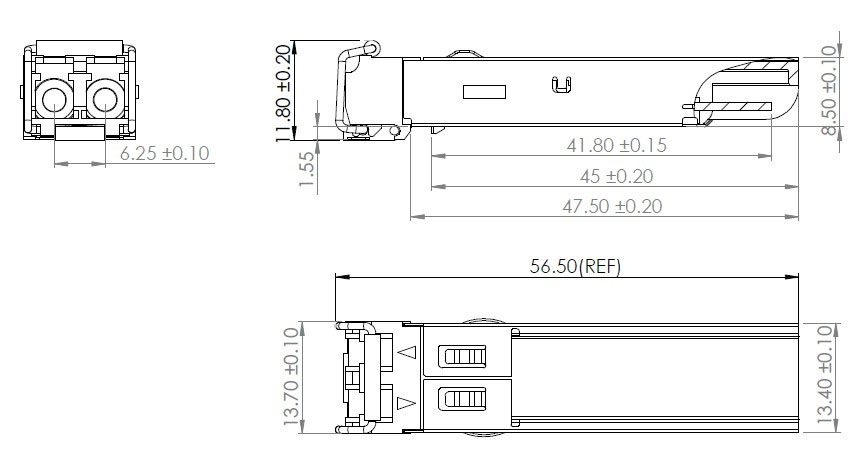

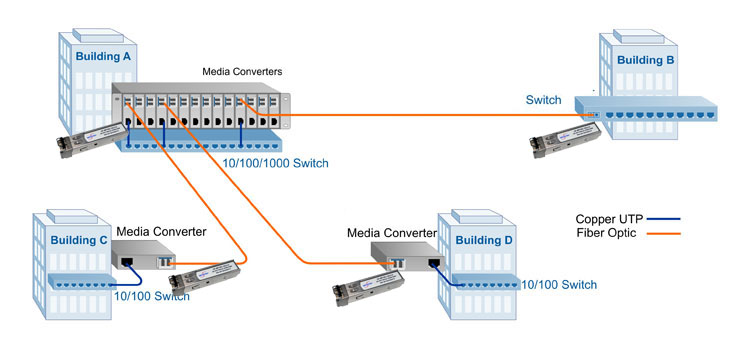

APPLICATION




  • Switch to Switch Interface
  • Router/Server interface
  • Gigabit Ethernet/SONET OC-48 / SDH STM-16
  • 1x/2x Fibre Channel
  • Other optical transmission systems


DOWNLOAD

Part No. Package Data Rate Wavelength Component Output Power Rec. Sens Connector Case Temp. Reach Multi-rate Download
OP-MDCP+8xxL1SD-40 DWDM SFP+ 9.95~11.3G DWDM C-band EML/PIN -1~4dBm -16dBm LC C/I 40km YES
OP-MDCP+8xxL1SD-80 DWDM SFP+ 9.95~11.3G DWDM C-band EML/APD -1~4dBm -24dBm LC C/I 80km YES
