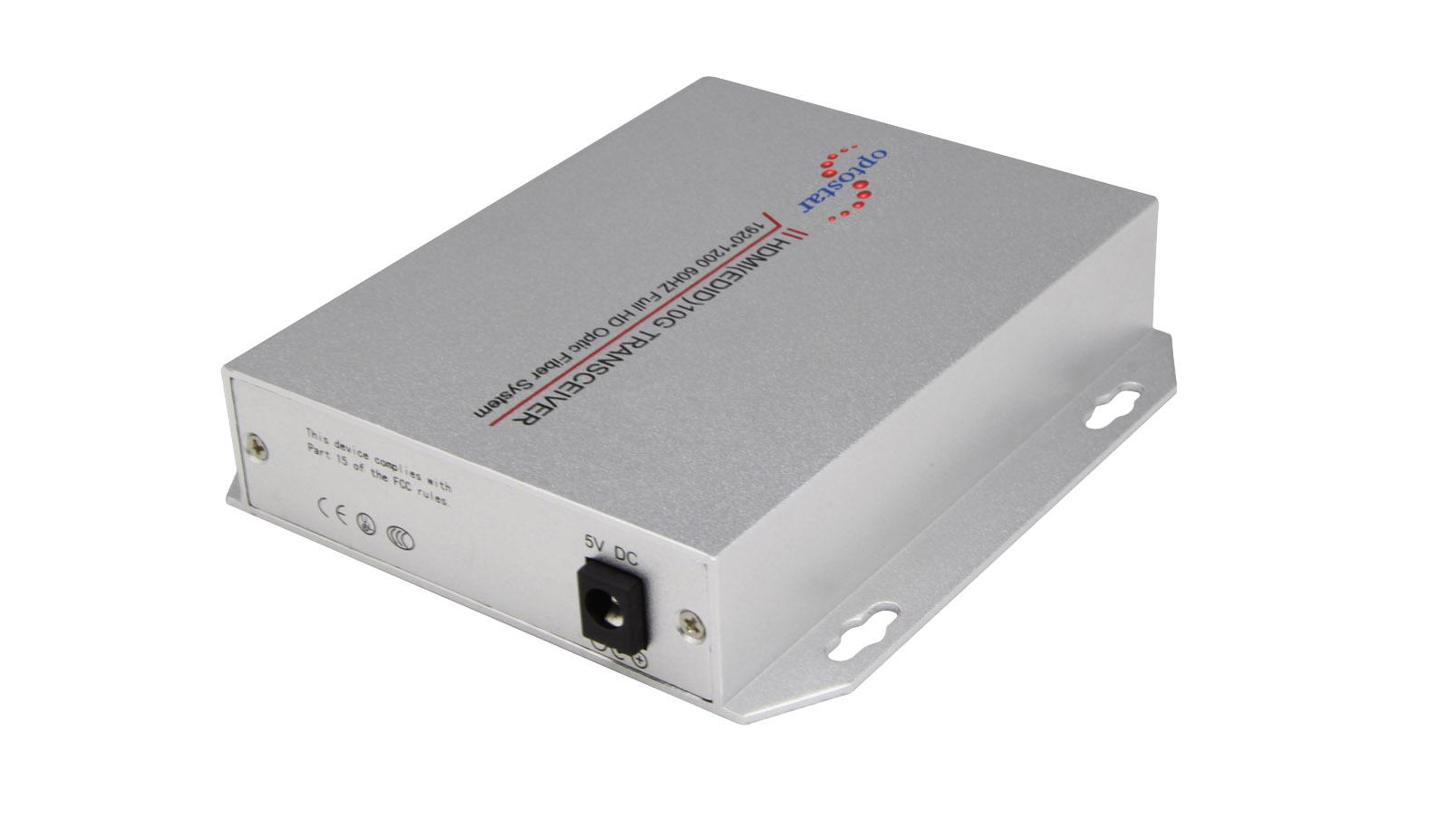

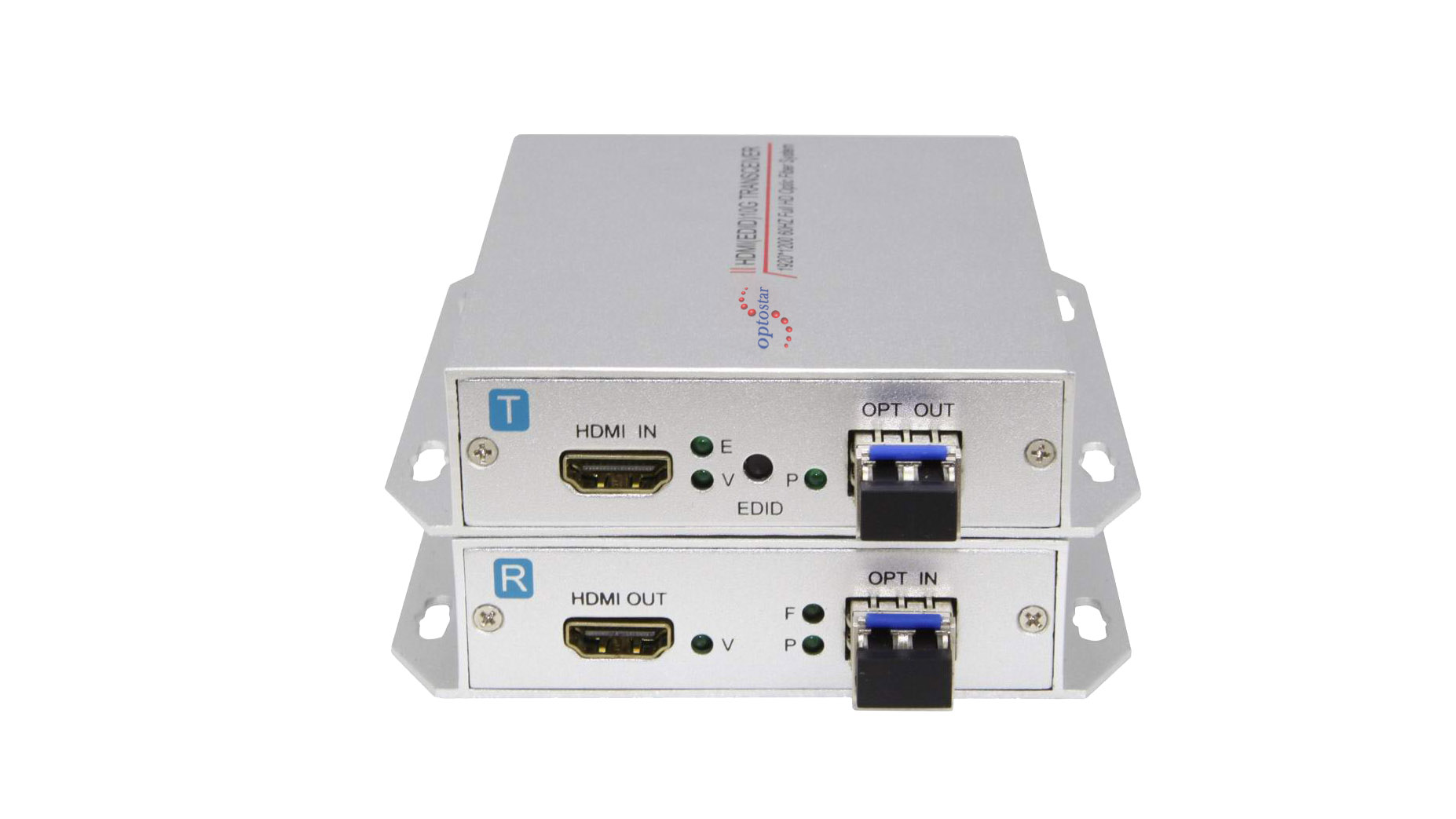

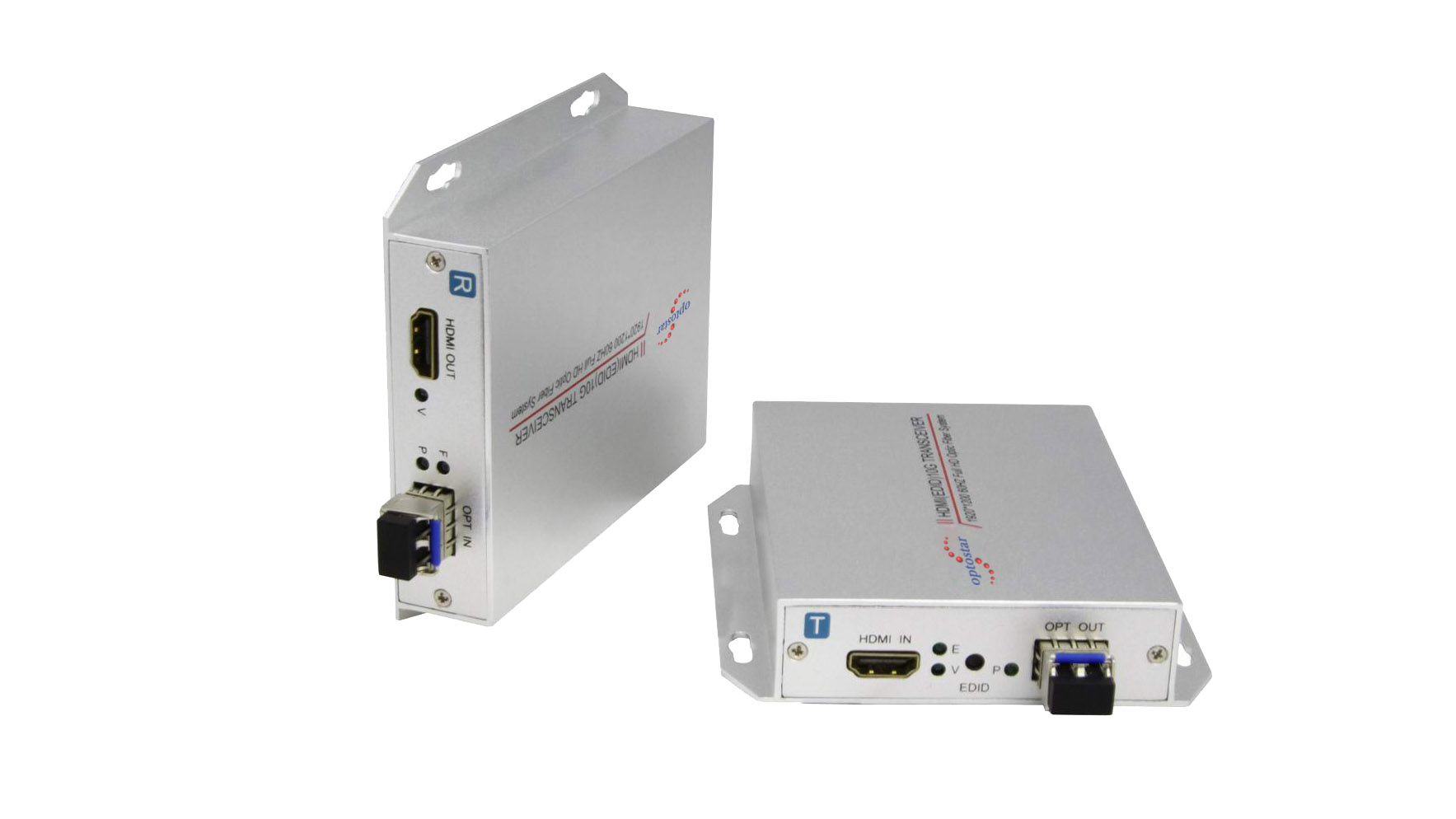

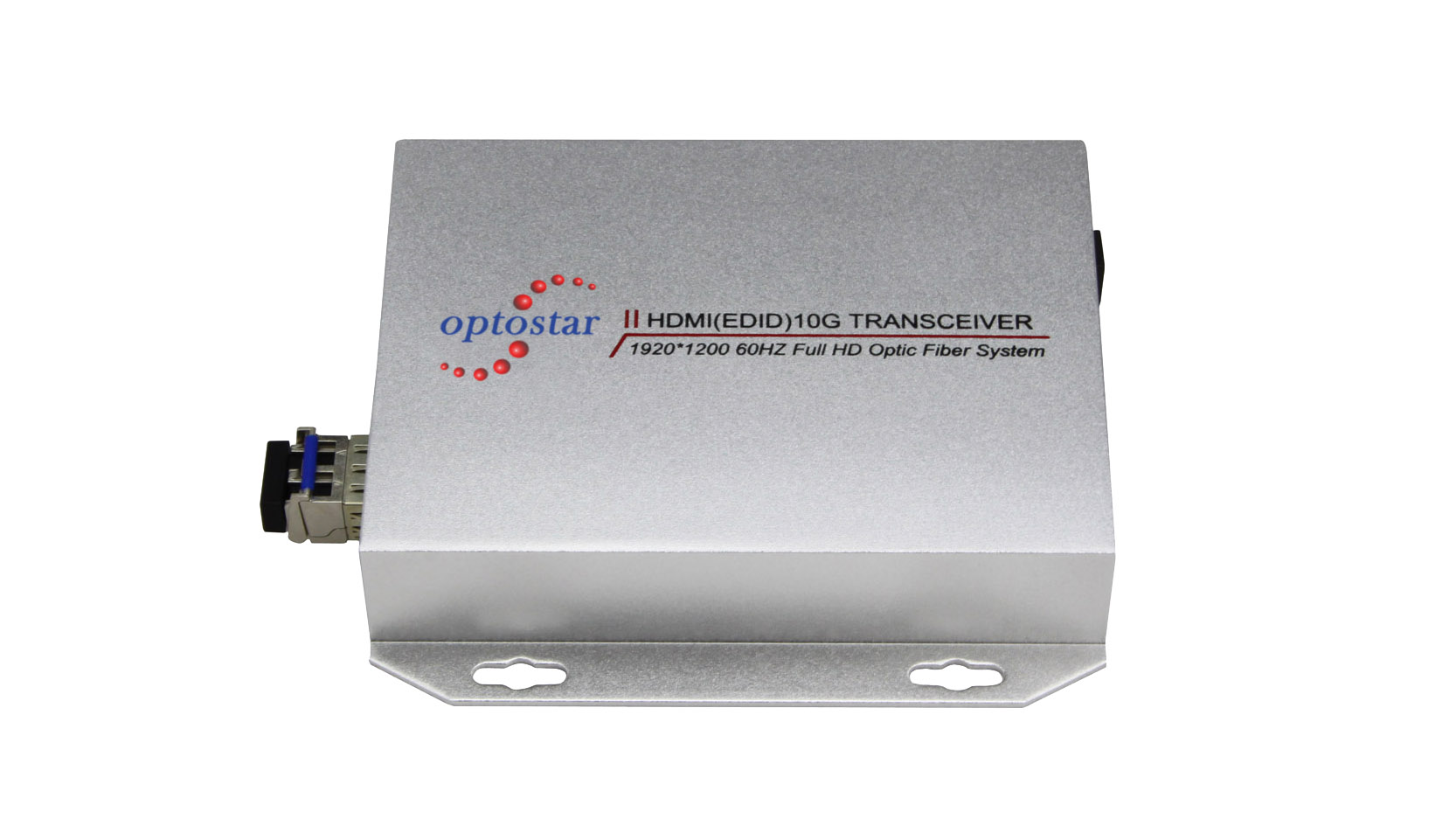

HDMI Optical transmitter & receiver adopts advanced non-compressed digital high-definition video and high-speed digital optical fiber transmission technology, can easily transmit host computer ,high-definition video signal sources, HDMI high-definition signals from various resolutions of the output of high-definition DVD/DVR devices to the remote distance.

Thus the HD video signal can break short cable transmission restrictions, greatly extend the application scope and connection distance and makes hd video wide-area spread, release; Through a DVI to HDMI adapter cable, may realize the DVI video.

         Product Features

  • All digit, no compression, high-definition optical fiber transmission
  • Supports 1 channel HDMI hd video transmission
  • Compatible support HDMI 1.3 b standard
  • Automatic recognition & configuration of the various display mode
  • Supports UXGA 1600 x1200 /WUXGA1920x1200 @ 60 Hz,
  • HDTV 1080 p 2048 x1080 @ 60 Hz resolution, max 5.4 Gbps bandwidth
  • Max support: 12 bit color depth
  • Max 225 MHz clock pixels
  • Built-in automatic equilibrium and refix time function, clear and steady frames
  • Supports E-DDC display mode memory and remote reading function, keep the display mode correct loading
  • Transparent support HDCP/CEC function
  • Gigabit fiber optic transmission technology, large capacity, easy to upgrade
  • Optical fiber WDM/CWDM/DWDM technology
  • No need software Settings, to support plug and play function, support hot swaps


PARAMETER APPLICATION DOWNLOAD CONTACT US

PARAMETER

Technical parameter name
Descriptions
Video Interface Characteristics
Channel Quantity(transmitter) 1 channel
Input Level(transmitter) 800-1200mVp-p (typical)
Input Differential Impedance (transmitter) 100Ω
Input Impedance(transmitter) 75 Ω(unbalanced)
Physical Interface(transmitter ) Type A-hole socket
Output Channel Quantity (receiver ) 1 channel (2 channels need be customized ,15 days or so)
Output Level (receiver ) 800-1200mVp-p(typical)
Video Color Depth(receiver ) 8/10/12 bit
Video Pixel Clock (receiver ) 225MHz
Video Bandwidth (receiver ) 5.4Gbps
Physical Interface(receiver ) Type A-hole socket
Transmitter/Receiver Signal Formats HDMI:   UXGA 1600x1200@60Hz
WUXGA 1920x1200@60Hz
HDTV: 1080P 2048x1080 @60Hz
E-DDC Standards E-DDC2/EDID
E-DDC Level 5V TTL level
E-DDC Processing loop output or transmitter remote access and memory
HDCP/CEC transparent support
Optical Fiber Interface Characteristics
Port Quantity 1 piece
Interface Type LC(SC can be customized)
Fiber Type Single mode/multimode
Transmission Distance 20/40/60/100KM(single mode)/200M(multimode)
Tx/Rx wavelength 850nm(multimode)/(1310nm/1550nm)(single mode)
Type
TX  wavelength(nm)
TX power
dBm

Rx sensitivity
dBm
Transmission Distance  Km
Light satura-tion
dB
Fiber Type(Single fiber or four fiber) LC/PC
multimode
850
-16.5~-15
-22
0~2
1
850nm(multimode)
Single mode
1310
-6~-3
-22
0~20
0.5
Single mode(9/125um)
1550DFB
-1~+1
-22
0~40
0.25
Single mode(9/125um)
1550DFB
-5~0
-28
0~60
0.25
Single mode(9/125um)
Power Characteristics
Supply Voltage AC85-260V/50Hz
Power Consumption 2.5w(Input:DC5V 1000mA)
System Characteristics
Mean Time Between Failure (MTBF More than 100000hours
Body Characteristics
Size(L x W x H) Standalone:122mmX90mmX31mm
1U rack-mounted:
482.6mmX235mmX44mm

Materials Aluminum Alloy

Net Weight 200g
Operating Environment Characteristics
Operating Temperature -40 ℃~+85 ℃
Storage temperature -45 ℃~+95 ℃
Relative humidity 0~95% (Non-condensing)

APPLICATION




DOWNLOAD

Model
Description
Max Transmission Distance (KM)
DownLoad
OP-VM-HDMI-M-2

Multimode, 1CH HDMI

0.5KM (Multi-mode)

OP-VM-HDMI-S-20

Single mode, 1CH HDMI

20 KM(Single-mode)

OP-VM-HDMI-S-40  Single mode, 1CH HDMI 40 KM(Single-mode)
OP-VM-HDMI-S-60

Single mode, 1CH HDMI

60 KM(Single-mode)

Note: The interface can be ST or FC, according to the different requirements from customers. The fiber optic transmission distance can be ordered. (40km, 60km, 100km…)

 (F:10/100M Ethernet;G:10/100/1000 Ethernet; T:Telephone ; V:Forward Video;E: Bi-directiona Video; A:Forward audio;B:Bi-directiona audio; R: reverse data; D:Bi-directiona Data; W:Switch/alarm)

S-40:40KM;  S-60: 60KM;                             S-100: 100KM                         -S: Single-mode;                      -M: Multi-mod




Package Include
No
Package List
1
HDMI HD Digital Optical Transceiver
2
User Guide
3
Warranty Card
4
Qualified Certification
5
Power Adapter
6
Facility
