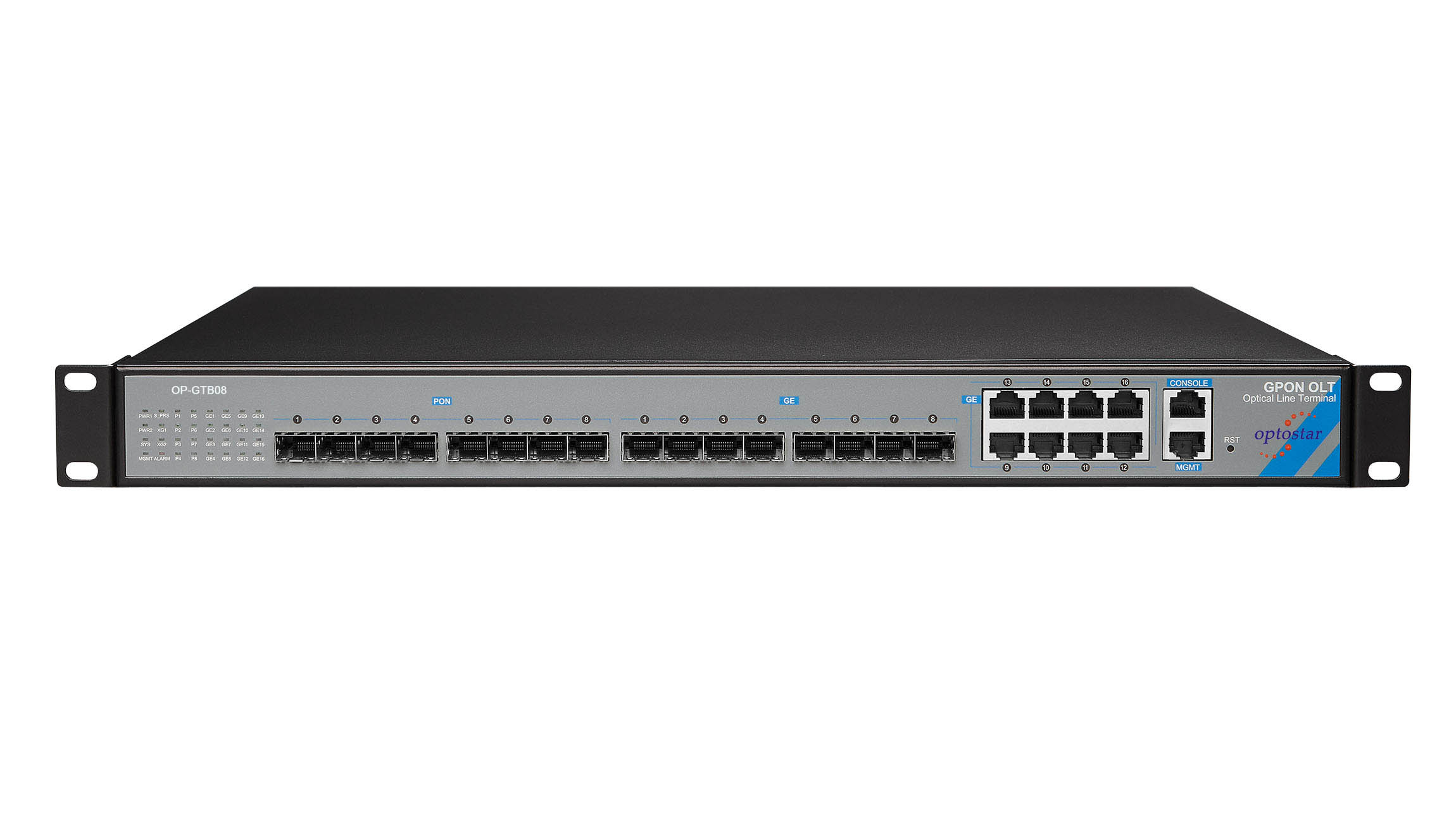

OPTOSTAR presents the industry's leading GPON solution of OP-GTB08, which complies with the relevant standards of ITU G.984.x and FSAN. OP-GTB08 is 1U Rack mount equipment, 8pon ports, 8 GE uplink optic ports, 8 GE uplink electric ports. The maximum optical coupling ratio of 1:128, up to 1024 GPON ONTs. The down link band width is 2.5Gbps and uplink bandwidth is 1.25Gbps. The product is in compact design and convenient for flexible using, easy to deploy with high performance. It can meet the requirements of equipment performance and compact volume of the room environment.

         Product Features

  • Comply with ITU-T G.984/G.988 standards and China's Telecom industry GPON standards
  • Support OMCI remote management of ONT/ONU, compatible with ITU-984.4 OMCI protocol
  • Standalone 1U 8PON compact design of OLT products
  • The complete layer 2 switching function
  • The QOS security
  • Easy-to-use management system
  • Support CLI and SNMP management. complying with OMCI standard.
  • SFU, HGU series ONT products, Meet the needs of the different scenarios of networking
  • ROHS compliant


PARAMETER APPLICATION DOWNLOAD CONTACT US

PARAMETER

Item

OP-GTB08

Chassis

Rack

1U 19 inch standard box

Slots

1*10 Gigabit uplink card slot
2 power module slot

Uplink Port

Copper

8*10/100/1000M auto-negotiable

SFP

8 SFP slots(1000BASE-TX interface)

10GE card

2 SFP (optional)

PON Port

QTY

8

Physical Interface

SFP Slots

Connector Type

ITU-TG.984.2Class B+

Max splitting ratio

1:128

Management Ports

1 10BASE-TX out band port
1 CONSOLE port

PON Port Specification
(Apply to OPTOSTAR PON module)

Transmission Distance :20KM, PON port speed: Downstream Data Rate: 2.5Gbps, Upstream Data Rate: 1.25Gbps, Wavelength: 1490nm TX,1310nm RX,Connector: SC,
Fiber Type: 9/125μm SMF, TX Power: +1.5~+5dBm,
Rx Sensitivity: -28dBm, Saturation Optical Power: -8dBm

Management Mode

SNMP, Telnet, CLI

Management Function

Support for state monitoring, configuration management, equipment log, equipment upgrades, equipment management, user management.Layer-2 switch configuration such as Vlan, Trunk, RSTP, IGMP, QOS, etc. PON management function: DBA ,ONT authorization, ACL, QOS, etc. Online ONT configuration and management. User management. Alarm management

Dimension

440mm(L)*391mm(W)*44mm(H)

Weight

4kg

Power Supply

220VAC

AC: 90V~240V,47/63Hz

-48DC

DC:-36V~-72V

Power Consumption

65W

Operating Environment

Working Temperature

0~50℃

Storage Temperature

-40~85℃

Relative Humidity

5~90%(non condensing)

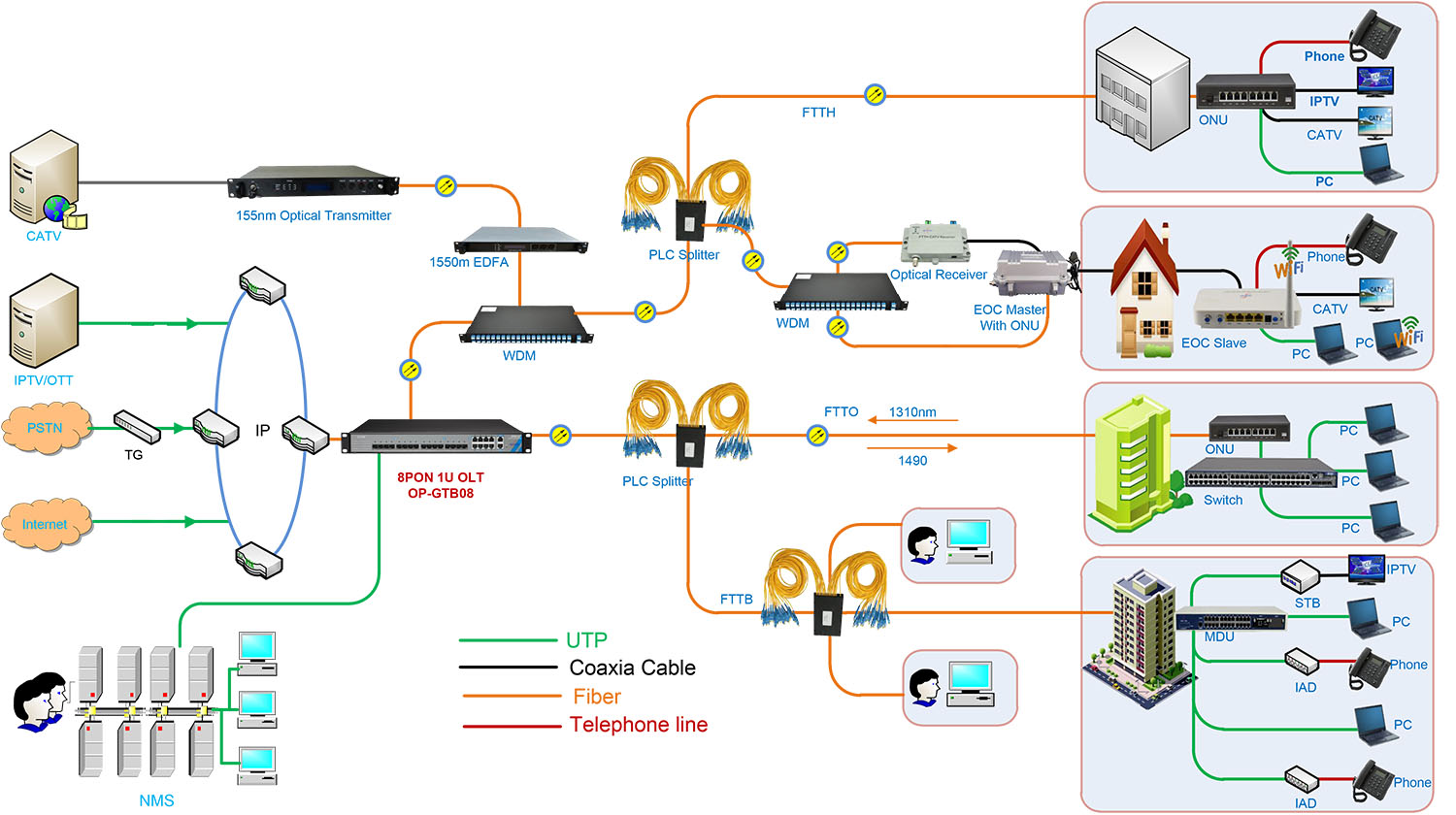

APPLICATION




DOWNLOAD

Part No. Chassis Rack Chassis Slots Uplink Port Copper Uplink Port SFP PON Port Download
OP-GTB08 1U 19 inch standard box 1*10 Gigabit uplink card slot
2 power module slot
8*10/100/1000M auto-negotiable 8 SFP slots 8
